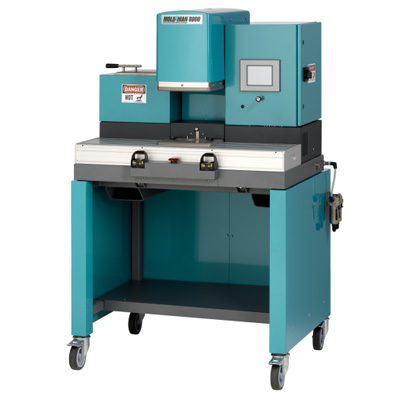

  • MoldMan 8000 Low pressure molding Systems
  • Print

    Email

Part number: 8000Manufacturer SKU:
For current pricing and to place an order please contact your Ellsworth Customer Service Representative.
  • Call Us Contact Customer Service at +66 2 6452820。

  • Live Chat Speak with one of our Technical Service Personnel.

  • Request a Quote Submit a quote request and a Sales Representative will contact you.

  • Send an Email We will respond within 1 business day.

  • Description
    The Mold Man® 8000 has been discontinued. Please contact MoldMan Systems for support of your existing Mold Man® 8000. For more information, please refer to the link below.
  • Product Details

    MODELS

    Mold Man® 8000TP

    FEATURES

    Designed for production runs around 250,000 units per year
    Extremely user-friendly operation. No special training required to operate
    Mold up to four cavities at the same time (depending on part size)
    Fully independent adjustable process control
    Precisely meter shot sizes
    Accurately control flow rates
    Exact pressure control
    Patented permanent nozzle engagement for fewer moving parts
    Soft close safety feature
    Safety features like two-hand-no-tie-down actuation, key lock for set-up or production mode, misplaced/foreign object sensing, low initial clamping pressure, and more

    SPECIFICATIONS

    Height1625 mm / 64.0”
    Width1040 mm / 41.0”
    Depth740 mm / 29”
    Weight430 kg / 950 lbs
    VoltageAC 208-230 V, Single Phase, 50/60 Hz
    Power4000 W
    Air Pressure8-10 bar / 115-145 psi
    Air Volume120 lpm / 4 SCFM
    ClampPneumatic
    Clamping Force10 kn / 1 ton
    Clamp Stroke150 mm / 6”
    EjectorPneumatic
    Mold-set Dimensions200 mm x 150 mm / 8” x 6”
    Injection NozzlePatented Permanent Engagement
    Mold-set CoolingCross-drilled mold platens
    Melt Reservoir10 liter (10 kg) / 22 lbs self draining
    Melt TemperatureUp to 245° C / 475° F
    Injection Pressure1-30 bar / 15-450 psi
    Shot Size0.5-100 grams / 0.02-3 ounces, typically
    Molding CyclePLC controlled: standard or advanced injection profiles
    Operator DisplayTouch screen interface with all molding parameters and cycle counter, customizable alarm screens, imperial or metric units

    ACCESSORIES

    Castor KitAdds 127 mm / 5” to height. Kit includes four castors with mounting hardware
    Double Clamping Cylinder Mold-set Cooling KitIncludes chiller, hoses and fittings
